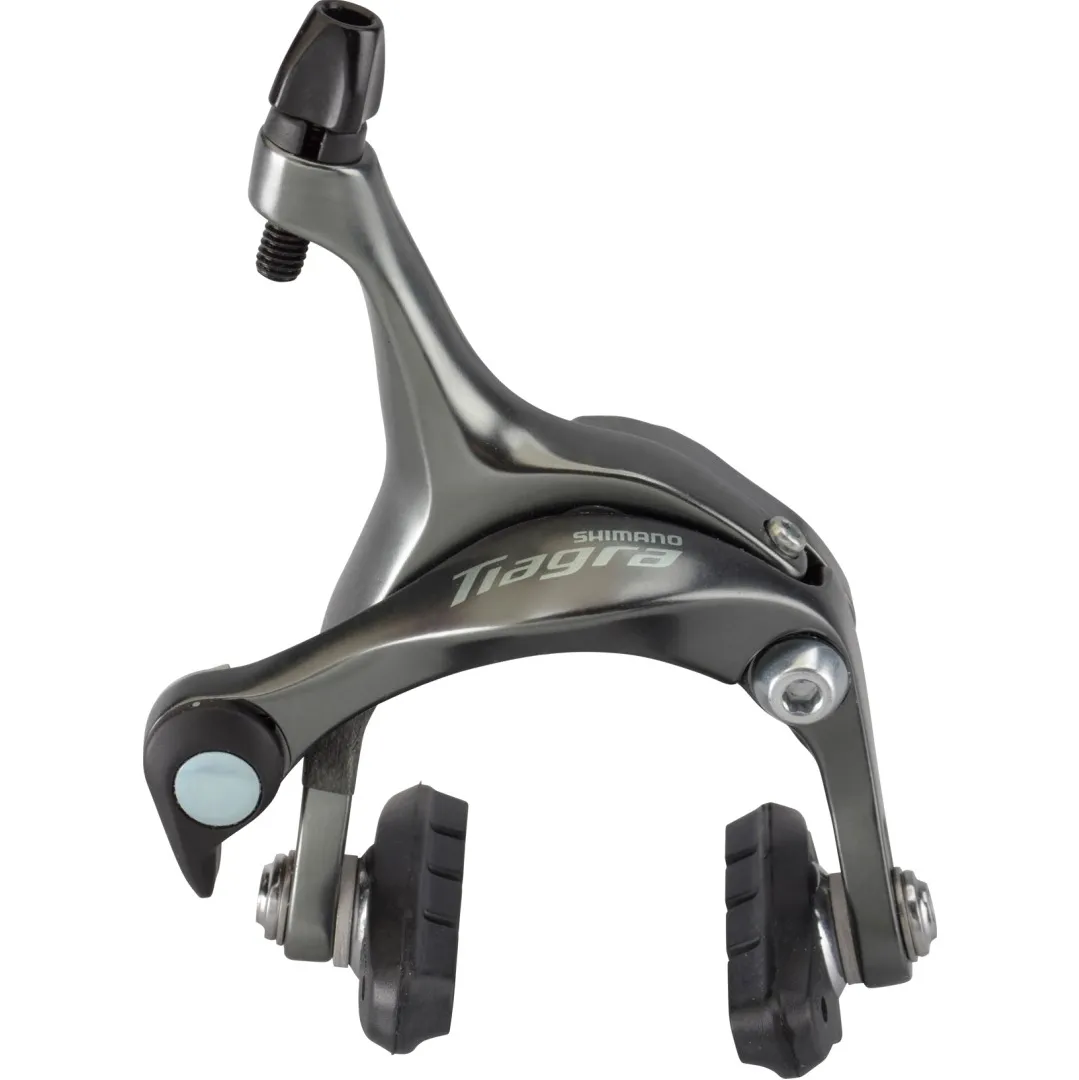

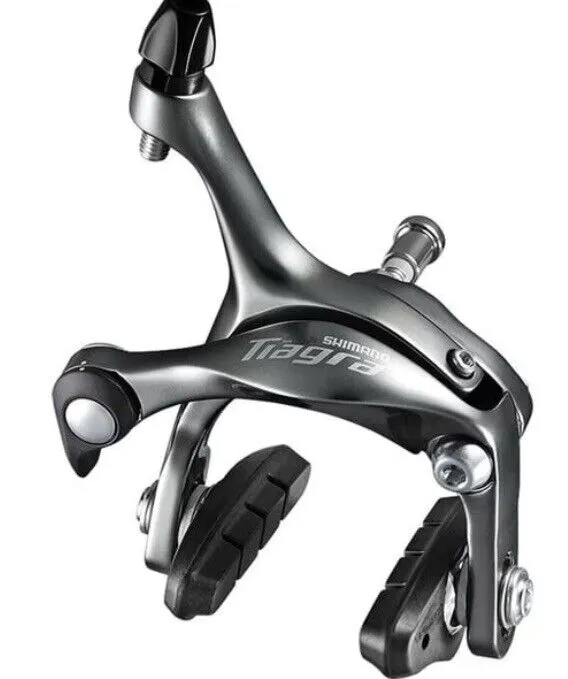

The SHIMANO TIAGRA Dual-Pivot brake caliper provides consistent all-around control. Compatible with 28mm tires, the caliper uses a thrust bearing pivot to reduce friction while new, toe-in adjustable brake shoes improve braking.
FEATURES
- Consistent all-around control
- 30% greater braking power modulation with Linear brake operation
- One thrust bearing of pivot reduces caliper friction
- New material adjustable toe-in brake shoes R50T5
- Better performance with Alloy rim under wet condition
- Toe-in adjustable brake shoes
- Compatible with 28C tires
PRODUCT SPECIFICATIONS
| MODEL NO | BR-4700 |
|---|---|
| SERIES | TIAGRA 4700 Series |
| Colour | Grey |
| Brake type | NEW SUPER SLR Dual pivot |
| Reach (mm) | 51 |
|---|---|
| Brake shoe|Standard | R50T5 |
| Brake shoe|Optional choice | R50T4 |
| Compatibility | NEW SUPER SLR |
| Assembly pivot nut (mm)|Front (mm)|10.5 | ✔ |
| Assembly pivot nut (mm)|Front (mm)|12.5 | ✔ |
| Assembly pivot nut (mm)|Front (mm)|18.0 | ✔ |
| Assembly pivot nut (mm)|Front (mm)|27.0 | ✔ |
| Assembly pivot nut (mm)|Front (mm)|32.0 | ✔ |
| Assembly pivot nut (mm)|Rear (mm)|10.5 | ✔ |
| Quick release lever | ✔ |
| Shoe angle adjusting | ✔ |
| Maximum tire size | 28C |
| Rim width (mm) | 19-26 |
